Overview

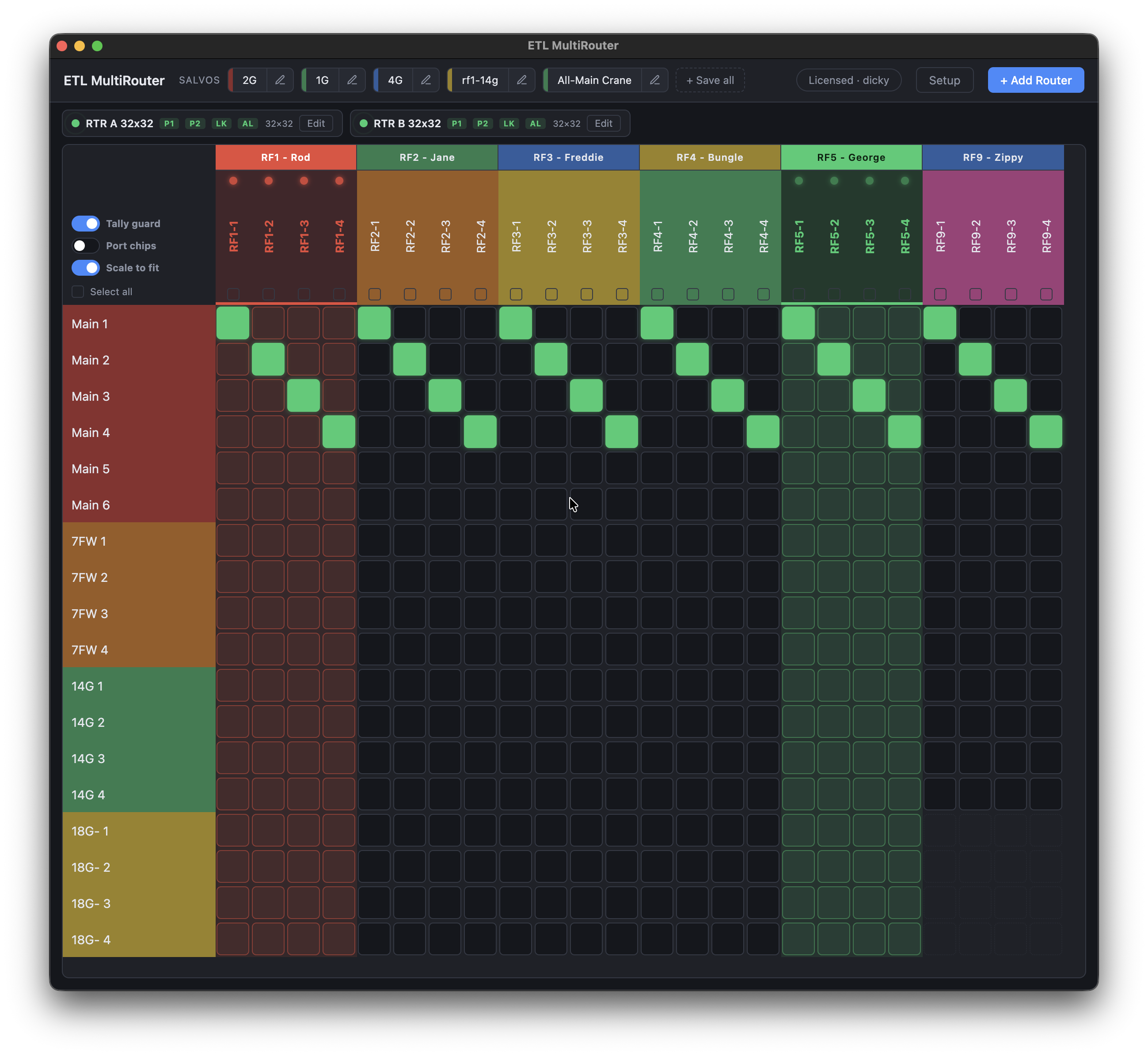

ETL MultiRouter presents several independent ETL RF matrix routers as a single crosspoint grid. Sources are global — a physical feed split to several routers appears as one row, with port chips showing the wiring to each router. Destinations are grouped across routers, and clicking a crosspoint automatically routes the correct input number on the right router.
Features
- Unified grid — click to route, drag for snapped multi-routing, amber pending → green confirmed states
- Router status strip — connection, PSU1/PSU2, interlink and summary alarm per router
- Global source list with drag reorder, multi-select, fill-and-increment naming, colours and merge/split for splitter-fed sources
- Destination groups spanning routers — only grouped destinations appear in the grid
- Tally per destination group with red / green / amber states, optional UMD text as group names
- Tally guard with on/off toggle to protect on-air routes
- Salvos — snapshot routing (all outputs or selected columns) and recall, sending only differing crosspoints
- Scale-to-fit — matrix resizes to the window
- Uses the published ETL TCP protocol (port 4000)
Download
Available for Mac and Windows. Includes a 14-day free trial — pricing available on request.
